BULLETIN NO. 1500

AIR CLEANING SYSTEMS AND
EQUPMENT BY
R. M.E. I., INC.

FILTER-MATE ® IS THE SOLUTION TO YOUR CLEAN AIR REQUIREMENTS


INDOOR AIR QUALITY vs. SICK BUILDING SYNDROME
Help remove the 1000 identified indoor air pollutants of which at least 60 are carcinogenic that can build to dangerous levles in todays tighter, more energy efficient buildings. Results:
  • Healthier Employees
  • Happier Customers
  • Cleaner Equipment & Surroundings
  • Greater Productivity
  • Less Maintenance


  • Eliminates in the room air cleaners which are unsightly, expensive, noisy, and take up valuable space. Our units work quietly above the ceiling.

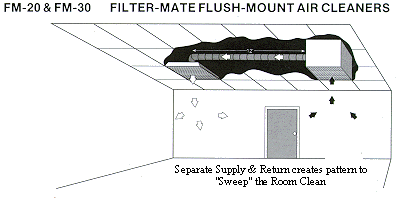

  • Separate Supply & Return allows for an air pattern to be established that "sweeps" the room clean. Eliminates "localized" or spot cleaning of conventional flush mounted air cleaners.
  • Non Electrostatic - Eliminates the noisy electrical arcing and ozone generation of outdated electrostatic air cleaners by using state-of-the-art HEPA filtration originally developed by the Atomic Energy Commission. ACTIVATED CHARCOAL is included to remove most odors, vapors, and gasses.
  • Our units operate quieter since supply & return grills are up to 12 ft. apart -- this eliminates the logarithmic building of air noise caused by supply and return grills being located too close together.
    		•
    -- Eliminates -- "short circuiting" of clean air and spot cleaning ... a common problme in competitor flush-mounts -- caused by the supply & return being next to each other in the same location
    APPLICATIONS
     These units remove heavy cigarette smoke and various odors in commercial applications such as lounges, break rooms, offices, restaurants, hospitals, computer rooms, pet shops, etc.

    Design & Construction
     The FM-20 & FM-30 are self-contained flush-mount ceiling air purifiers complete with motor, blower, and filters. Thse units are designed to operate above the ceiling with separate supply and return grills connected by 12 ft. of insulated flex hose. Filters are easily changed from the room velow the unit. Filters include a pleated prefilter, 95% DOP HEPA, and activated charcoal cell. Primary filters are spring loaded for air-tight seal. Prefilter is retained separate from primary filters, allowing for quick & easy replacement. Cabinetry is 20 gauge falvanized steel with painted decorative grills designed to fit in a 2' x 2' T-bar ceiling grid. The mechanical design of this product is protected under U.S. Patent No. 4955997.

    3 Stage Filtration
    1. Prefilter 30% ASHRAE
    2. 95% D.O.P HEPA
    3. Activated Charcoal
    1. Pre-filter removes the visible particles while protecting and increasing life of the HEPA filter.
    2. HEPA filter is 95% efficient at 0.3 microns. Only including 95% ASHRAE filters, are rated using easier test standards. HEPAS are commonly used in clean rooms and hospitals.
    3. Activated charcoal removes odors and gasses that pass through all particulate filters as well as electrostatic collectors. Odors and fasses are a major component of cigarette smoke.

    FILTER-MATE SPECIFICATIONS
    MODEL DIMESIONS MAIN
    CABINET LxWxH    		 SHPG
    WT    		 MOTOR BLOWER CFM MAX* dBA @ 3 ft 20" X 20" Filter Depth
    FM-20 23.75"x23.75"x20" 85 lbs. 115 V. 1/8 HP 1.43 Amps, Therm. Protected, 1525 RPM 4.75 x 6.25 forward curve - direct drive 350 53 1" Prefilter
    4" HEPA
    2" Charcoal (4 lbs.)
    FM-30 23.75"x23.75"x30" 110 lbs. 115 V. 1/3 HP 4.0 Amps, 1550/1300/1100 RPM, 3 spd., P.S.C. Therm Protected 9.5 x 7.125 forward curve-direct drive 700 61 2" Prefilter
    6" HEPA
    4" Charcoal (8 lbs.)
    FM-30-XL 23.75"x23.75"x30" 110 lbs. 115 V. 1/2 HP 6.0 Amps, 1550/1300/1100 RPM, 3 spd., P.S.C. Therm. Protected 9.5 x 7.125 forward curve - direct drive 1000/1400* 63/66* 2" Prefilter
    6" HEPA
    4" Charcoal (8 lbs.)
    FM-30-C 23.75"x23.75"x30" 120 lbs. 115 V. 1/3 HP 4.0 Amps, 1550/1300/1100 RPM, 3 spd., P.S.C. Therm Protected 9.5 x 7.125 forward curve-direct drive 700 61 2" Prefilter
    10" Charcoal (20 lbs.)
    *1400 CFM Available with optional 95%, 12" ASHRAE FILTER and 3/4 HP motor.
    HEPA and charcoal are rated for lower CFM and are standard equipment.

    OPTIONS:
    1. Remote 3 spd. switch and faceplate optional on FM-30.
    2. Additional multi-supply package available: includes additional 12 ft. 10" diameter flex hose, 2'x2' supply grill, Y adapter, connectors.
    3. Decorative side panels optional where full clearance above drop ceiling is not available

    Design & Specifications Subject to Change Without Notice.
